6kw 8kw 10kw 12kw three phase Off Grid Grid Tie Inverter Solar Hybrid Parallel Solar Inverter
6kw 8kw 10kw 12kw three phase Off Grid Grid Tie Inverter Solar Hybrid Parallel Solar Inverter
Couldn't load pickup availability
Safe & reliable

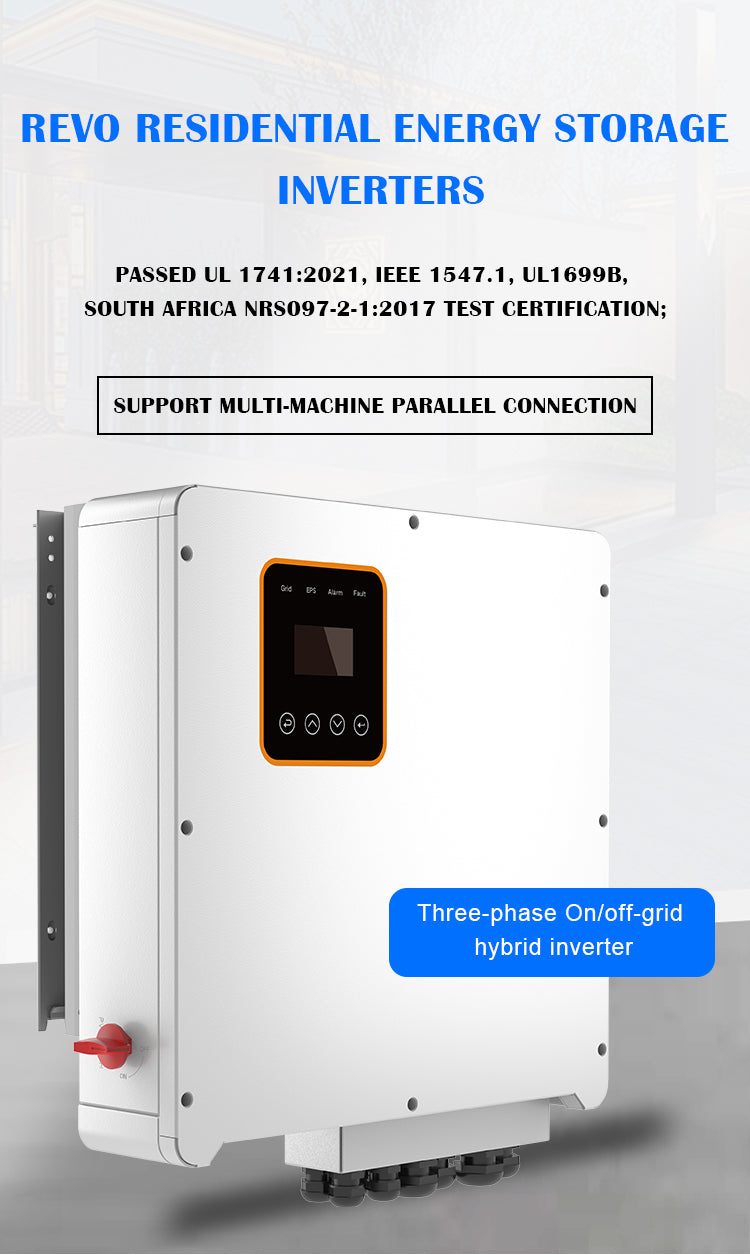

• Passed IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-1/-6-3, European grid connection: EN50549-1,
German grid connection: VDE4105/0124 , UK grid connection: G99, South Africa: NRS097-2-1:2017 test certification;
Friendly & flexible

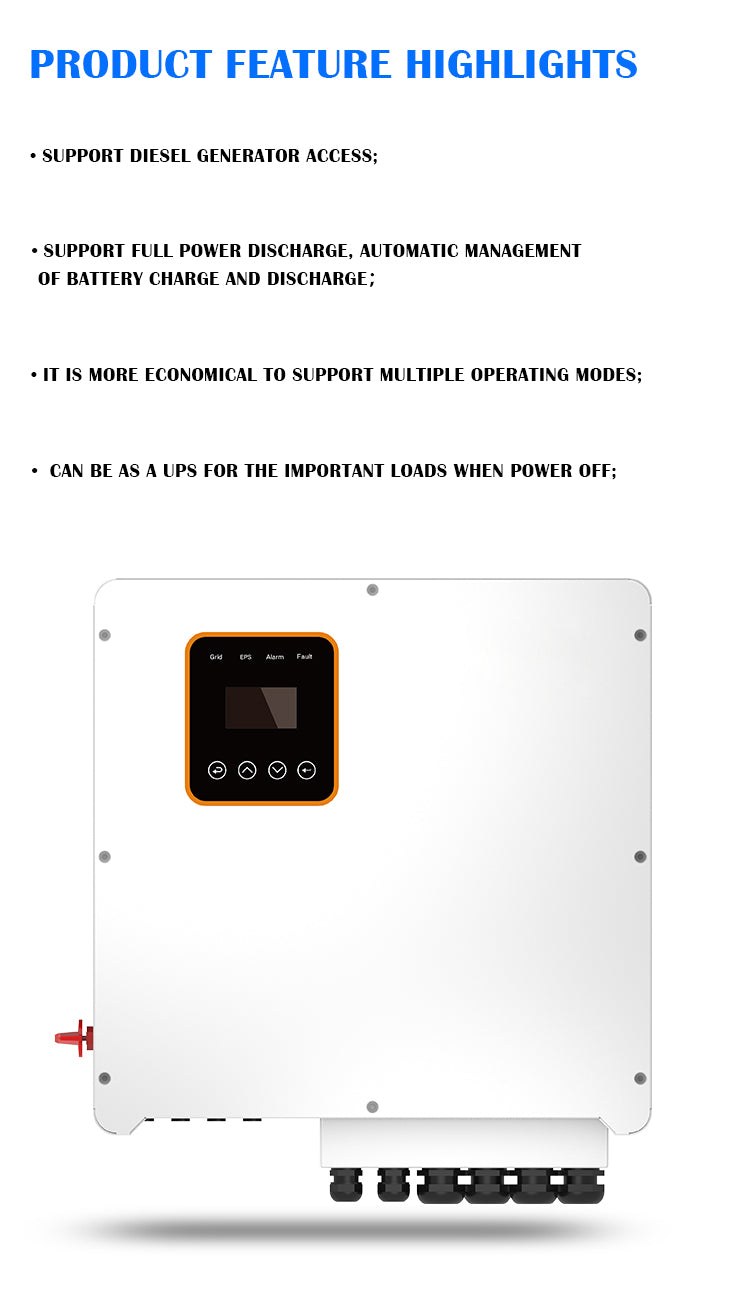

• Support diesel generator access;
• Support full power discharge, automatic management
of battery charge and discharge；
Economical & practica
• It is more economical to support multiple operating modes;
• Can be as a UPS for the important loads when power off;
|
Mode
|
R8KH3
|
R10KH3
|
R12KH3
|
|
Input (PV)
|
|
||
|
Max. power(kW)
|
10.4
|
13
|
15.6
|
|
Max. DC voltage(V)
|
1000
|
||
|
MPPT voltage range(V)
|
180-850
|
||
|
Max.input current of single MPPT(A)
|
12.5
|
||
|
MPPT tracker/strings
|
2/1
|
||
|
AC output
|
|
||
|
Rated output power(kVA)
|
8.8
|
11
|
13.2
|
|
Max. output current(A)
|
12.7
|
15.9
|
19.1
|
|
Grid Voltage/Range(V)
|
400/360~440
|
||
|
Frequency (Hz)
|
50/60
|
||
|
Power Factor
|
0.8lagging-0.8leading
|
||
|
THDi
|
<3%
|
||
|
AC output topology
|
3W+N+PE
|
||
|
Battery
|
|
||
|
Battery voltage range(V)
|
125-600
|
||
|
Max. charging voltage(V)
|
600
|
||
|
Full BatteryVoltage(V)
|
210
|
270
|
250
|
|
Battery type
|
Lithium/Lead-acid
|
||
|
Max.Charge/Discharge Current(A)
|
40
|
40
|
50
|
|
Communication interface
|
CAN/RS485
|
||
|
EPS output
|
|
||
|
Rated power (kVA)
|
8.8
|
11
|
13.2
|
|
Rated output voltage(V)
|
400
|
||
|
Rated output current(A)
|
12.7
|
15.9
|
19.1
|
|
Rated frequency (Hz)
|
50/60
|
||
|
Automatic switching time (ms)
|
<20
|
||
|
THDu
|
<2%
|
||
|
Overload capacity
|
110%, 30S/120%, 10S/150%,0.025
|
||
|
General data
|
|
||
|
Battery Charge/Discharge Efficiency
|
96.6%
|
96.70%
|
96.80%
|
|
DC Max. Efficiency
|
97.90%
|
98.20%
|
98.20%
|
|
Europe Efficiency
|
97.20%
|
97.50%
|
97.50%
|
|
MPPT Efficiency
|
99.50%
|
99.50%
|
99.50%
|
|
Ingress protection
|
IP65
|
||
|
|
|||
|
Noise emission (dB)
|
<35
|
||
|
Operation temperature
|
- 25℃~ 60℃
|
||
|
Cooling
|
Natural
|
||
|
Relative humidity
|
0~95%(non-condensing)
|
||
|
Altitude
|
2,000m(>2,000 Derating)
|
||
|

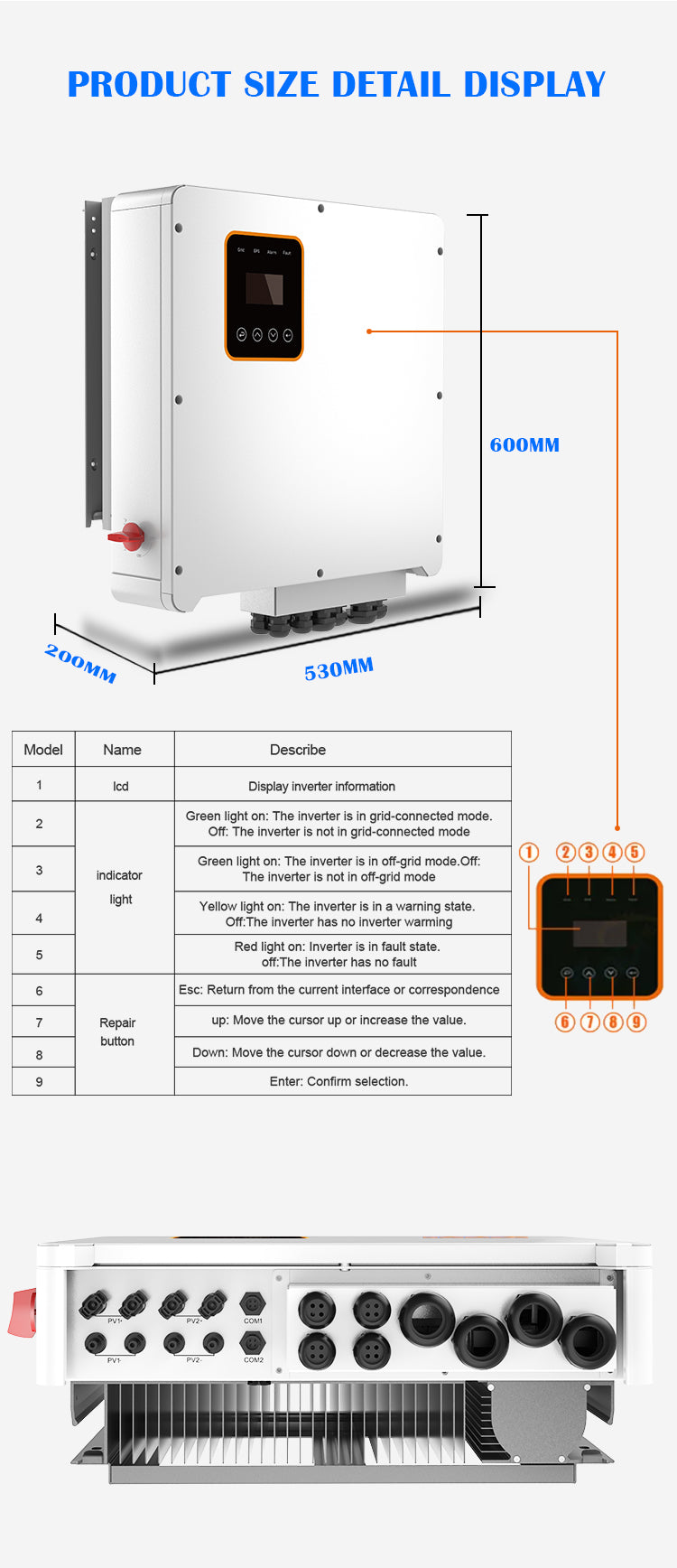

Dimensions W*D*H (mm)
|
530*200*600
|
||
|
Weight (kg)
|
29
|
||
|
Isolation transformer
|
No
|
||
|
Self-consumption(W)
|
<3
|
||
|
Display and communication
|
|
||
|
Display
|
LCD
|
||
|
Interface:RS485/WIFI/4GCAN/DRM
|
Yes/Opt/Opt/Yes/Yes
|
||
|
Certification
|
CE,TUV
|
||
